AAM Competition Q50 & Q60 S-Line / R-Line Cold Air Intake System

449.99 449.99 USD 559.99

559.99

  • Material

This combination does not exist.

 In Stock - ready to ship!

AAM Competition Infiniti Q50 & Q60 S-Line / R-Line Cold Air Intake System

 THE LARGEST, HIGHEST FLOWING INTAKE KIT ON THE MARKET FOR Q50/Q60

Flexibility, Tunability, Performance! The AAM Competition Q50 & Q60 Intake System is the ONLY adjustable intake system for the Infiniti Q50 & Infiniti Q60– giving you the option to maximize your vehicle's performance depending on your Infiniti's current setup (stock, mildly modified, heavily modified).


Developed with upgradeability in mind, the variable design provides flexibility in engine tuning and greater air flow. Stock or near stock Infiniti Q50/Q60’s will use the intake in S-Line configuration. In S-Line configuration the intake can be installed on the vehicle without any other adjustments and provides a clean, easy to install 10+ horsepower gain. Infiniti Q50’s and Q60's equipped with more bolt-on upgrades and engine tuning will use the intake in R-Line configuration. R-Line configuration provides maximum air-flow to the engine allowing for up to 20 to 25+ horsepower gains when tuned.


THE ONLY FULL INTAKE KIT THAT COMES WITH A HIGH PERFORMANCE MAF HOUSING - OTHER KITS ON THE MARKET USE THE FACTORY MAF HOUSING.


How an intake works on the modern day Infiniti:

The MAF (Mass Airflow Sensor) is a critical component in running a modern day engine. The MAF reads the volume of air passing by it in a tube and translates this “mass” of air into an electronic signal. This signal is sent electronically to the Infiniti Q50 / Q60’s ECM (Electronic Control Module – the cars computer) which uses this information as the main reference to run the Q50/Q60’s engine. The diameter of the MAF housing (which is integrated into the factory intake) is critical as the sensor is calibrated to read a specific range of frequency (flow) in a specific size and shape MAF housing.  Aftermarket intakes most commonly use the small stock MAF housing or use a tube that is the same diameter of the MAF housing so that the MAF sensor reads the same (otherwise, tuning to recalibrate the MAF sensor would be necessary).


So, even though most aftermarket intakes have larger filters and/or larger filter boxes, they either re-use the stock MAF housing or the size of the MAF housing remains the same as stock, therefore not allowing any more air to flow through the MAF than the factory intake and MAF housing already does.  This is where the AAM Competition Infiniti Q50 & Q60 S-Line / R-Line Cold Air Intake System shines by providing the option to utilize a significantly larger MAF housing and significantly increasing air flow.

S-Line Configuration

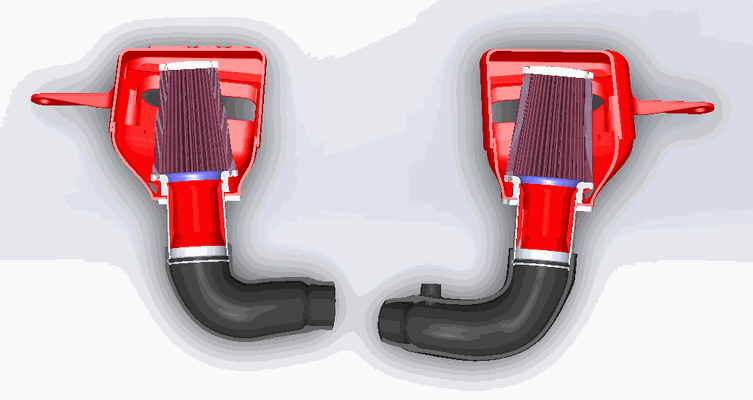

The S-Line Tuning Inserts (colored in red) are installed in this rendering.  When the S-Line Tuning Inserts are installed in the included larger AAM Competition MAF Housings, the internal diameter closely matches the factory MAF housings 2.43" inner diameter, which allows the intakes to be ran on an Infiniti Q50 & Q60 without any tuning, while still taking advantage of the much improved intake design with significantly larger airboxes and large high-flow conical performance air filters.

Odoo • Text and Image
Odoo • Image and Text


R-Line Configuration

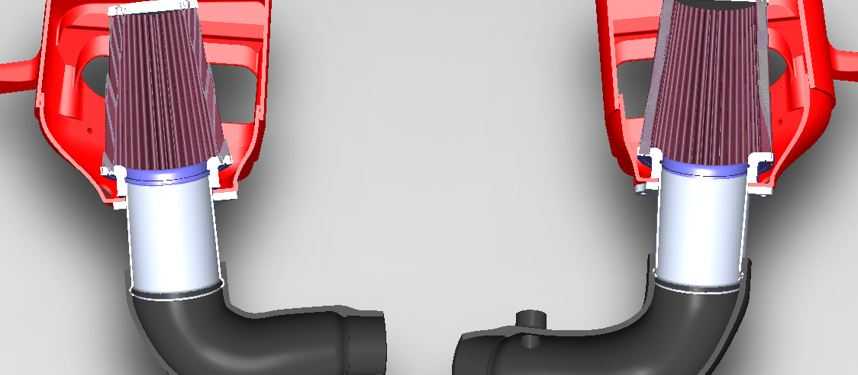

The S-Line Tuning Inserts in the AAM Competition MAF Housing are removed - allow for full 3" unrestricted maximum air flow!



Installation Video

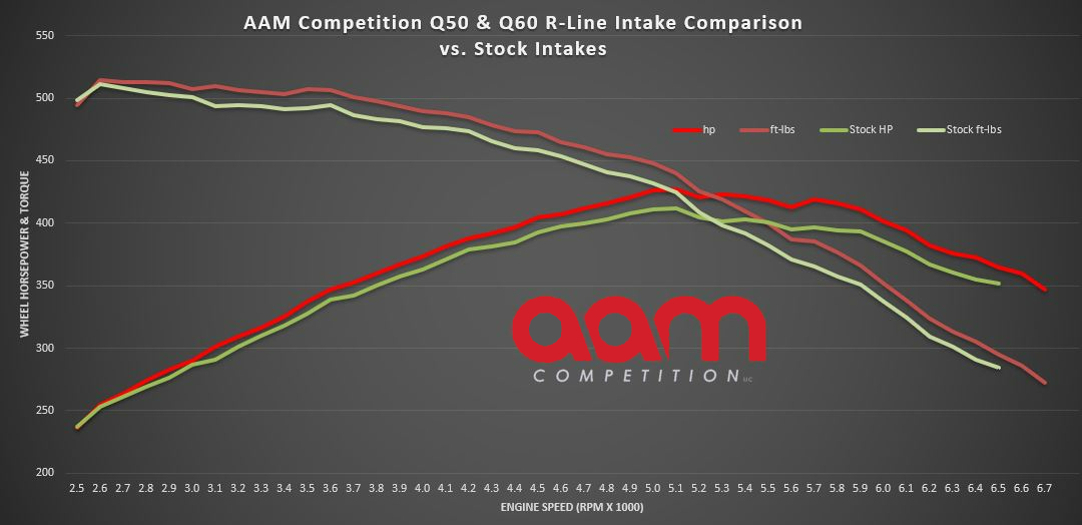

HP an Torque Power Gains - AAM Competition Q50 & Q60 R-Line Intake Tuning vs Stock Q50 & Q60 Intakes Tuning

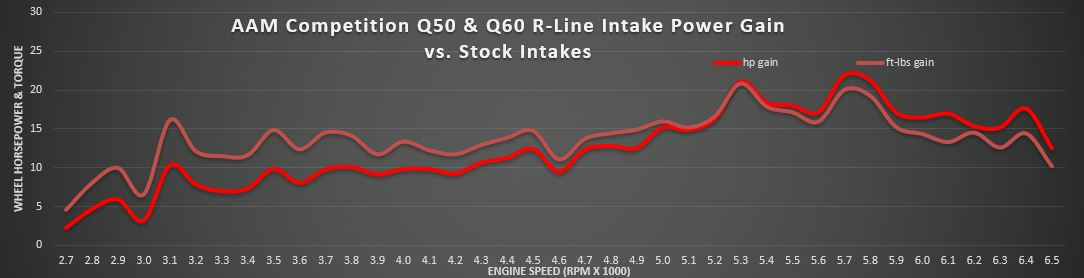

Horsepower and Torque Increase vs. Engine RPM

Common intake mistakes - buyer beware:

The factory intakes utilize a well engineered completely sealed style intake box.  However, the design does not allow for a properly sized conical filter for best air flow.  Many aftermarket intake kits for the Q50 and Q60 have much larger air filters, but they do not utilize completely sealed intake boxes.  Instead they use easy to make and cheaper heat shields and/or partial heat shield boxes.  Why is this bad for the Q50 & Q60?  Even though these types of intake kits have a larger filter, they have shown reductions in power on the dyno.  This is because without a completely sealed air box, the air filters will draw in the hot air surrounding the engine compartment.   Utilizing completely sealed intake boxes, the AAM Competition Infiniti Q50 & Q60 S-Line / R-Line Cold Air Intake System is a true cold air style intake system that draws in cooler air from outside of the engine compartment.




S-Line Intake Configuration

AAM Competition engineered the intakes to use larger 3" MAF housings for maximum flow.  When running the intake on an Infiniti Q50 / Q60 with stock tuning, the intakes features a carefully engineered MAF (Mass Airflow Sensor) insert called the S-Line Tuning Insert.  By reverse engineering the OEM MAF sensor housing and after many hours of intense testing, AAM Competition determined the optimal shape and diameter for the S-Line Tuning Insert. The S-Line Tuning Insert affects the OEM ECU programming in a way that keeps everything within specifications for normal operation while taking advantage of smoother, less restrictive piping and filtering for impressive power gains.


R-Line Intake Configuration

For those wanting maximum power, simply remove the S-Line Tuning Insert and tune the car using aftermarket tuning software. Removing the S-Line Tuning Insert allows for maximum airflow to move unrestricted through the intake optimizing efficiency and performance.


R-Line Intake Configuration shown below!

Odoo • A picture with a caption

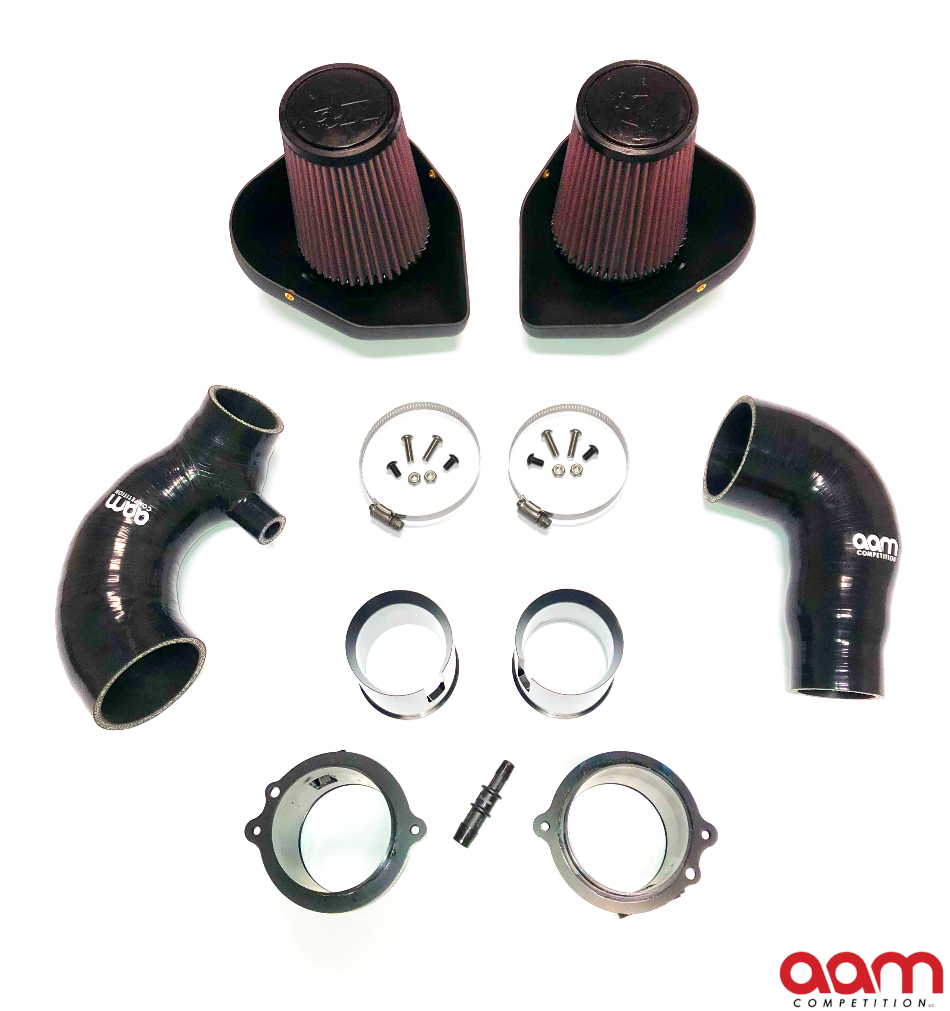

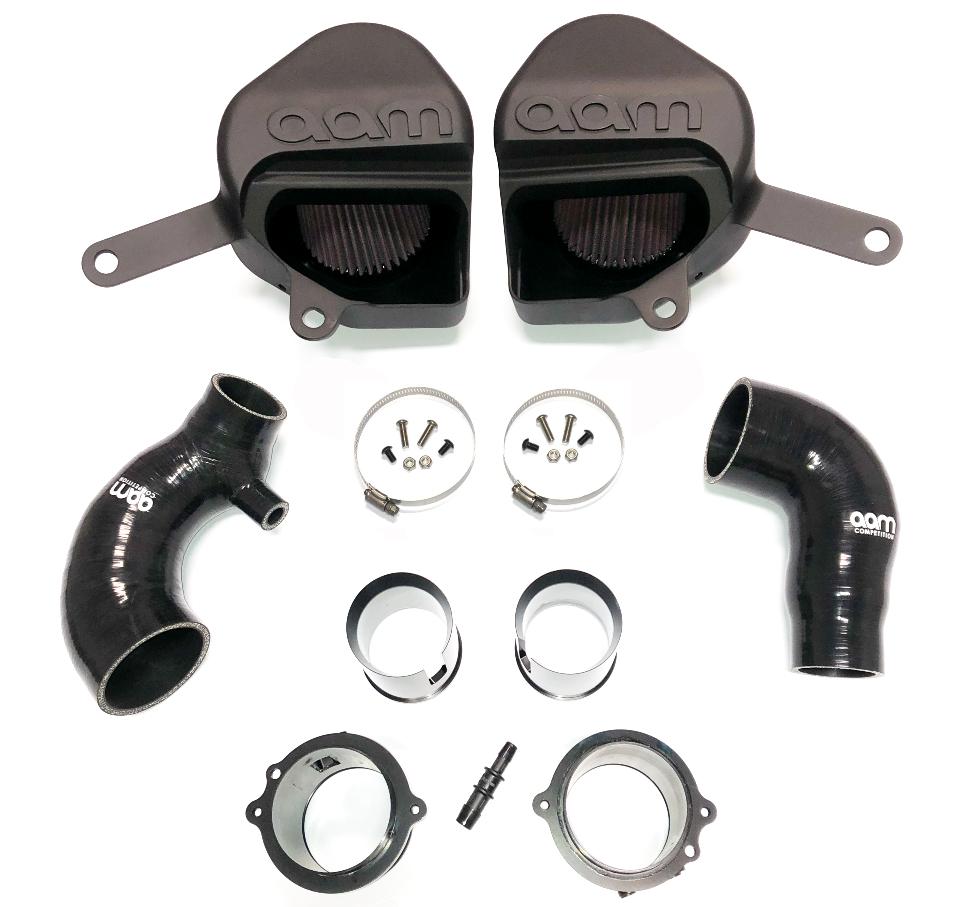

All hardware and install instructions are included with the kit.  Large wire enforced 4-ply silicone turbocharger inlet pipes ensure a snug fit, while allowing for engine movement and flex. The wire enforcement ensure the turbocharger inlet pipes will not collapse under high suction from the turbochargers.  The high flow air filters keep the air flow unrestricted, while efficiently protecting the engine from the elements. Note: the S-LINE Tuning insert will come pre-installed, if you plan on running the stock tune, leave it installed. If you are getting a full tune, remove the insert for maximum flow.

  1.  Adjustable for different setups
  2. Significant horsepower gains when tuned
  3. High-performance MAF housing for increased airflow
  4. True cold air intake for cooler air supply
  5. Easy installation with included hardware
  1. Variable design for flexible engine tuning.
  2. Large 3" MAF housing for maximum airflow.
  3. Completely sealed intake boxes for improved air flow.
  4. Wire-enforced silicone turbocharger inlet pipes for durability.
  5. S-Line Tuning Insert for optimized power gains.

Installation instructions can be found here:

  • 2015 to 2023 Infiniti Q50 3.0t (all versions - 3.0t, Pure, Lux, Sport, Red Sport, Sensory, Signature Edition)
  • 2016 to 2023 Infiniti Q60 3.0t (all versions - 3.0t, Pure, Lux, Sport, Red Sport)

AAM Competition is now offering flexible ways to BUY NOW and PAY LATER. Your credit score is NOT effected when you check your eligibility. No prepayment fees and your first payment is due 30 days AFTER checkout. Easy monthly payments over 3, 6, 12 or 24 months. Look for the silver financing button located directly below ADD TO CART and BUY NOW. Financing is currently available on all AAM Competition products. For further information, please visit our financing page

If you have a question about this product, message us through our Contact Page. Our staff is ready and available to help you select the right product or products for your car!

RECENTLY SOLD WITH THIS PRODUCT

Your Dynamic Snippet will be displayed here... This message is displayed because you did not provided both a filter and a template to use.

Specifications

Material Plastic (Standard)
